PIPE BEVELING MACHINE

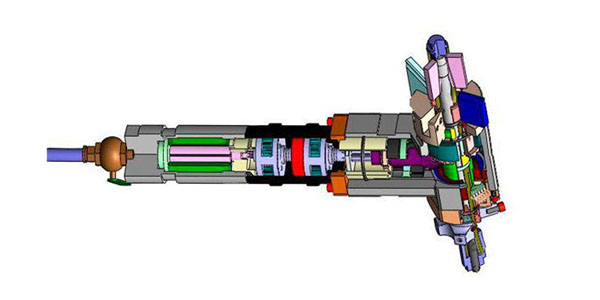

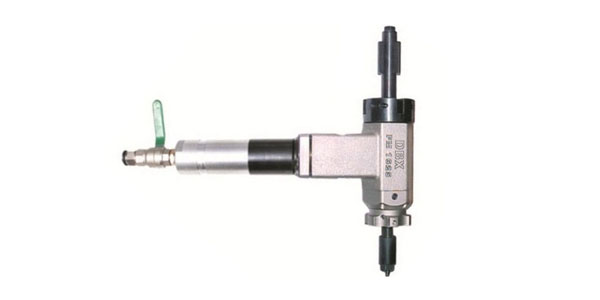

FM 1625

FM- 1625 The little player FM-1625 is light weight yet powerful machine. Use of FM-1625 for Facing, beveling and weld preparation is easier due to its compact design and quick set up. Slim body design makes this machine the best choice for use in restricted access area and close clearance jobs. Commonly used during shutdown of Heat Exchangers, Condenser and Piping industries.

Drive Pneumatic Electric
ID Locking Range (mm) 20 – 42 20 – 42
Torque (Nm) 27.5 45.5
Ideal Speed (RPM) 400 250
Feeding Stroke (mm) 23 23
Electric Power (watts) 650
Pneumatic Power (HP) 0.6
Air Consumption (cfm) 16
Air Pressure (psi) 90
Weight (kg) 5.5 5.5

FM 3000

FM- 1625 The little player FM-1625 is light weight yet powerful machine. Use of FM-1625 for Facing, beveling and weld preparation is easier due to its compact design and quick set up. Slim body design makes this machine the best choice for use in restricted access area and close clearance jobs. Commonly used during shutdown of Heat Exchangers, Condenser and Piping industries.

Drive Pneumatic Electric
ID Locking Range (mm) 28 – 76 28 – 76
Torque (Nm) 84 138
Ideal Speed (RPM) 110 140
Feeding Stroke (mm) 40 40
Electric Power (watts) 595
Pneumatic Power (HP) 0.83
Air Consumption (cfm) 42
Air Pressure (psi) 90
Weight (kg) 9.5 11

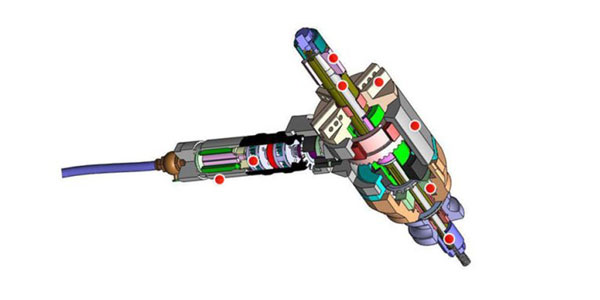

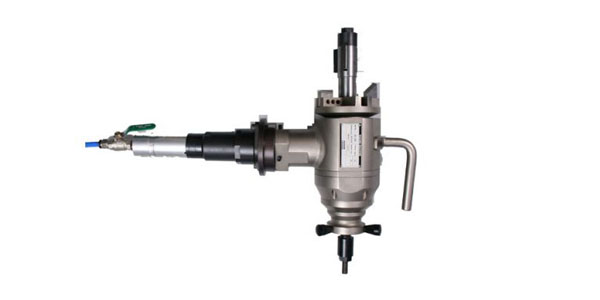

FM 4500

FM-4500 The DFM-4500 is designed to cover all the boiler pipe range and above. Designed to handle tough heavy wall tubes. Rugged and powerful machine also finds its use for seal weld removal in boilers tubes. Commonly used during shutdown of Boilers and Piping industries.

Drive Pneumatic Electric
Locking Range (mm) 39-104 39-104
Torque (Nm) 220 240
Ideal Speed (RPM) 60 60
Feeding Stroke (mm) 40 40
Electric Power (watts) 1800
Pneumatic Power (HP) 1.3
Air Consumption (cfm) 40
Air Pressure (psi) 90
Weight (kg) 21 23

FM 8000

FM- 4500 The DFM-4500 is designed to cover all the boiler pipe range and above. Designed to handle tough heavy wall tubes. Rugged and powerful machine also finds its use for seal weld removal in boilers tubes. Commonly used during shutdown of Boilers and Piping industries.

Drive Pneumatic Electric
Locking Range (mm) 51 – 203 51 – 203
Ideal Speed (RPM) 40 40
Torque (Nm) 220 220
Feeding Stroke (mm) 40 40
Pneumatic Power (HP) 1.3
Air Consumption (cfm) 40
Air Pressure (psi) 90
Electric Power (watts) 1800
Weight (kg) 26.5 30

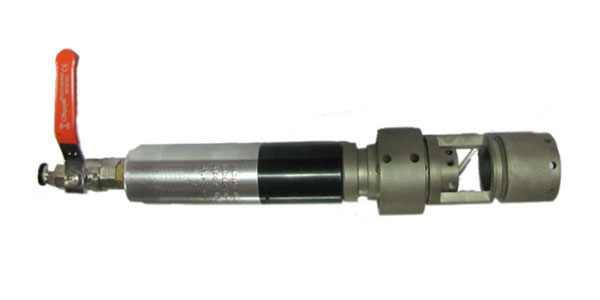

FM 1500 / 3000 CALMPING

Fully compact design makes it easy to use in various site conditions. Easy locking and unlocking of the tubes. Positive locking of tube with 3 jaws. Easy to replace jaw mechanism. easily replaceable cutting bits.

DrivePneumaticElectric
ModelFMP -1500FMP-2500FME-1500FME- 2500
Locking Range (mm)10 – 4019 -6510 – 4019 – 65
Ideal Speed (RPM)200150200150
Torque (Nm)27.58445138
Feeding Stroke (mm)23402340
Pneumatic Power (HP)0.831.3
Air Consumption (cfm)1642
Air Pressure (psi)9090
Electric Power (watts)8501000
Weight (kg)5.59.55.59.5
